01 Definition and Phenomenon of Rainbow Patterns

Rainbow pattern, also known as Color Mura, strictly speaking, there are two types of rainbow pattern phenomena that we currently see, namely "reflective rainbow pattern" and "transmissive rainbow pattern".

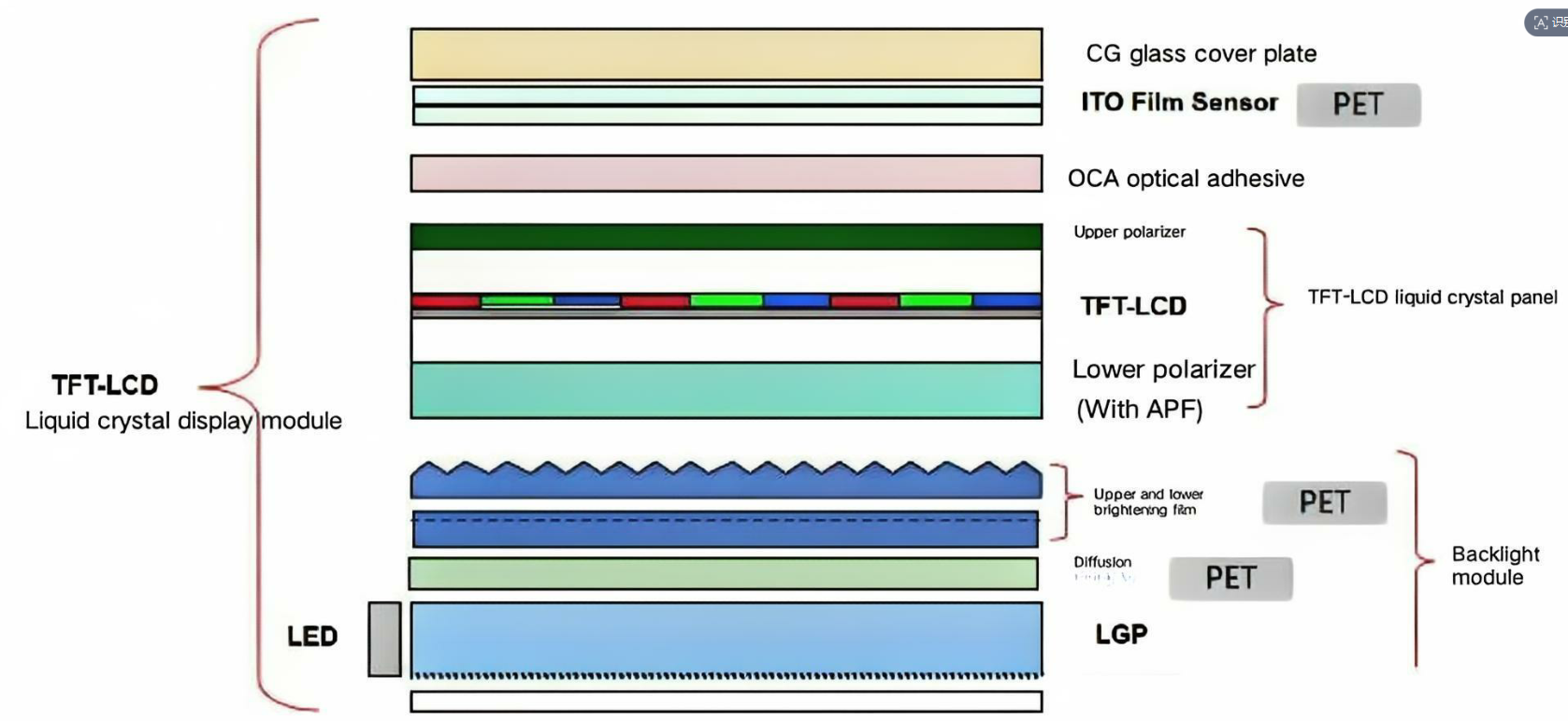

In TFT-LCD liquid crystal display modules, many optical films use PET as the substrate, such as diffusion films, enhancement films, TP ITO films, etc. When the light emitted by the LED passes through these optical films, refraction and reflection occur inside the optical films.

The rainbow patterns produced by using PET substrate and reflective polarizing film (i.e. APF brightening film) generally belong to the category of "reflective substrate color Mura", abbreviated as RSCM in English.

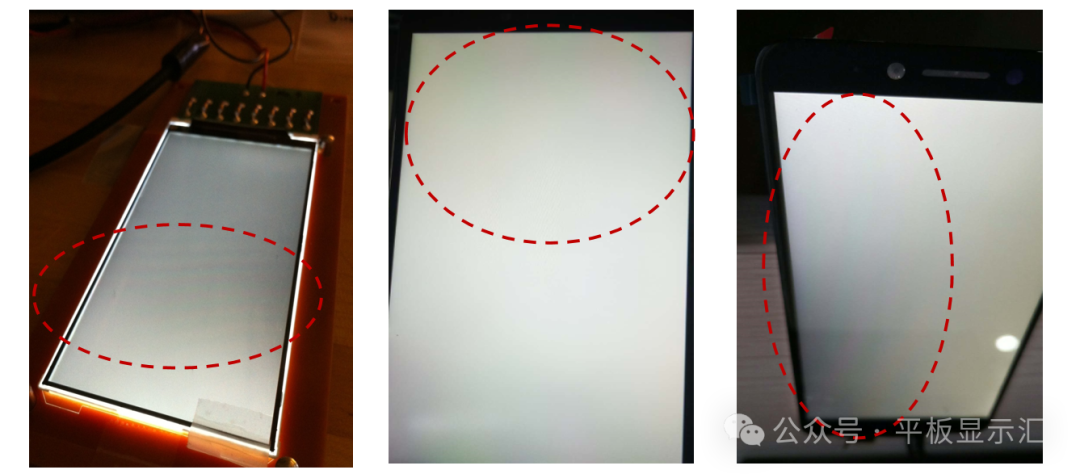

Rainbow pattern is a visual defect in TFT-LCD liquid crystal display modules caused by light interference after refraction and reflection of various optical materials. It appears as partial or overall rainbow like color stripes on a completely white screen; The colors of color stripes usually appear as alternating or mixed interference colors of red, green, and blue, resembling a rainbow.

The phenomenon of rainbow pattern defects usually has several key characteristics:

① Rainbow like morphology: The rainbow pattern phenomenon presents alternating interference colors such as red, green, and blue (similar to the colors of soap bubbles or oil films), usually without a fixed shape, and may be striped, patchy, or reticular.

② Visible from a specific perspective: Rainbow patterns can only be seen from a specific observation angle, and their phenomenon may completely disappear or worsen with changes in observation angle.
